TMB Series

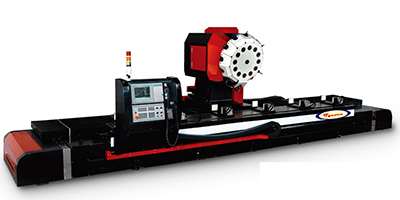

BT# 30 Spindle

Specification Unit TMB-3-25 TMB-3-35 TMB-3-45 TMB-3-55 TMB-3-65
Main Spindle Spindle speed rpm 8000/12000
Spindle taper   BT30
Capacity Longitudinal travel (X) mm 2500 3500 4500 5500 6500
Cross travel (Y) mm 350
Vertical travel (Z) mm 300
Cutting feed-rate (X,Y,Z) mm/min 8000
Rapid traverse (X,Y,Z) mm/min 36000/12000/12000
Motor Main spindle HP 5/7.5
Feed (X,Y,Z) HP 3/3/2
Positioning Accuracy X Rack mm ±0.04
Y/Z Ball Screw mm ±0.02
Repetition Posisioning Acuracy mm X:±0.01(±500) Y/Z: ±0.01
Tool Magazine Tool storing capacity tools 12/14
Method   Tapping Type Tool Changer
Max Tool Weight kg 6
BT# 30 Spindle

Specification Unit TMB-3-70 TMB-3-80
Main Spindle Spindle speed rpm 8000/12000
Spindle taper   BT30
Capacity Longitudinal travel (X) mm 7000 8000
Cross travel (Y) mm 350
Vertical travel (Z) mm 300
Cutting feed-rate (X,Y,Z) mm/min 8000
Rapid traverse (X,Y,Z) mm/min 36000/12000/12000
Motor Main spindle HP 5/7.5
Feed (X,Y,Z) HP 3/3/2
Positioning Accuracy X Rack mm ±0.04
Y/Z Ball Screw mm ±0.02
Repetition Posisioning Acuracy mm X:±0.01(±500) Y/Z: ±0.01
Tool Magazine Tool storing capacity tools 12/14
Method   Tapping Type Tool Changer
Max Tool Weight kg 6

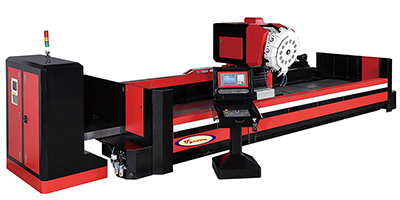

BT# 40 Spindle

Specification Unit TMB-4-25 TMB-4-35 TMB-4-45 TMB-4-55 TMB-4-65
Main Spindle Spindle speed rpm 8000/12000
Spindle taper   BT40
Capacity Longitudinal travel (X) mm 2500 3500 4500 5500 6500
Cross travel (Y) mm 350
Vertical travel (Z) mm 300
Cutting feed-rate (X,Y,Z) mm/min 8000
Rapid traverse (X,Y,Z) mm/min 36000/12000/12000
Motor Main spindle HP 7.5/10
Feed (X,Y,Z) HP 5/3/3
Positioning Accuracy X Rack mm ±0.04
Y/Z Ball Screw mm ±0.02
Repetition Posisioning Acuracy mm X:±0.01(±500) Y/Z: ±0.01
Tool Magazine Tool storing capacity tools 12/14
Method   Tapping Type Tool Changer
Max Tool Weight kg 6
BT# 40 Spindle

Specification Unit TMB-4-70 TMB-4-80
Main Spindle Spindle speed rpm 8000/12000
Spindle taper   BT40
Capacity Longitudinal travel (X) mm 7000 8000
Cross travel (Y) mm 350
Vertical travel (Z) mm 300
Cutting feed-rate (X,Y,Z) mm/min 8000
Rapid traverse (X,Y,Z) mm/min 36000/12000/12000
Motor Main spindle HP 7.5/10
Feed (X,Y,Z) HP 5/3/3
Positioning Accuracy X Rack mm ±0.04
Y/Z Ball Screw mm ±0.02
Repetition Posisioning Acuracy mm X:±0.01(±500) Y/Z: ±0.01
Tool Magazine Tool storing capacity tools 12/14
Method   Tapping Type Tool Changer
Max Tool Weight kg 6
